Biomolecular structure prediction has shifted from single-target runs to proteome-scale worklists. The bottleneck is no longer whether a model can fold a protein. It is how fast an entire queue of independent targets moves through parsing, featurization, GPU inference, and output writing. NVIDIA’s new technical deep dive walks through BioNeMo Inference Runtime (BioIR), a Python library that accelerates supported structure-prediction models on NVIDIA GPUs while keeping the standard PyTorch workflow. BioIR has already run at production scale. It powered the recent expansion of the AlphaFold Database, generating protein-complex structures across 4,777 proteomes, about 31 million candidate complexes, with 1.81 million released as high-confidence predictions.
Is it deployable? Yes. BioIR is available now as an open GitHub repository with a wheel containing precompiled CUBINs. Runtime use needs Python 3.12+, a compatible NVIDIA GPU and driver, a staged model checkpoint, and per-chain A3M MSAs. It does not require nvcc, CUDA source, CMake, or the CUDA toolkit.
What is BioIR
BioIR targets the operations that general-purpose inference stacks do not fully optimize. These include Pairformer and Evoformer stacks, triangle operations, pairwise attention, diffusion transformers, and atom-level modules. Models stay ordinary torch.nn.Module objects. There is no engine build, export step, or separate artifact between a checkpoint and a forward pass.
There are 2 ways to use it. The end-to-end processor moves an InputRequest through parsing, tokenization, feature generation, GPU inference, and PDB or mmCIF writing. Direct PyTorch integration lets developers construct a supported model or reuse selected optimized modules inside custom code. The tutorial demonstrates the processor path with Boltz-2 (model_source="boltz-2"). Each protein chain requires an A3M MSA. Paired or unpaired MSAs are accepted for inputs with multiple non-identical protein chains. Templates can be supplied manually because BioIR does not run HHsearch or HMMsearch. The processor supports ligand structure prediction but not ligand-affinity prediction.
Three Layers of Acceleration
BioIR optimizes at 3 distinct layers, each targeting a different bottleneck:
- Kernel selection: Supported operations pick compatible BioIR custom, cuEquivariance, or PyTorch fallback implementations based on model configuration, GPU, data type, and tensor shape.
- Module optimization: A separate
optimize()mechanism enables CUDA Graph capture for compatible modules, cutting launch overhead. - Pipeline scaling: A Ray executor places 1 complete model replica on each visible GPU in a node and distributes independent inputs among them. CPU stages (parsing, featurization, writing) overlap with GPU folding.
Note: Ray does not split a single forward pass across GPUs. Replica mode scales worklists, not individual targets. Per the support matrix, context-parallel folding is planned but not yet available. The capacity rule is simple: engine_stage.compute x num_gpus must not exceed visible GPUs.

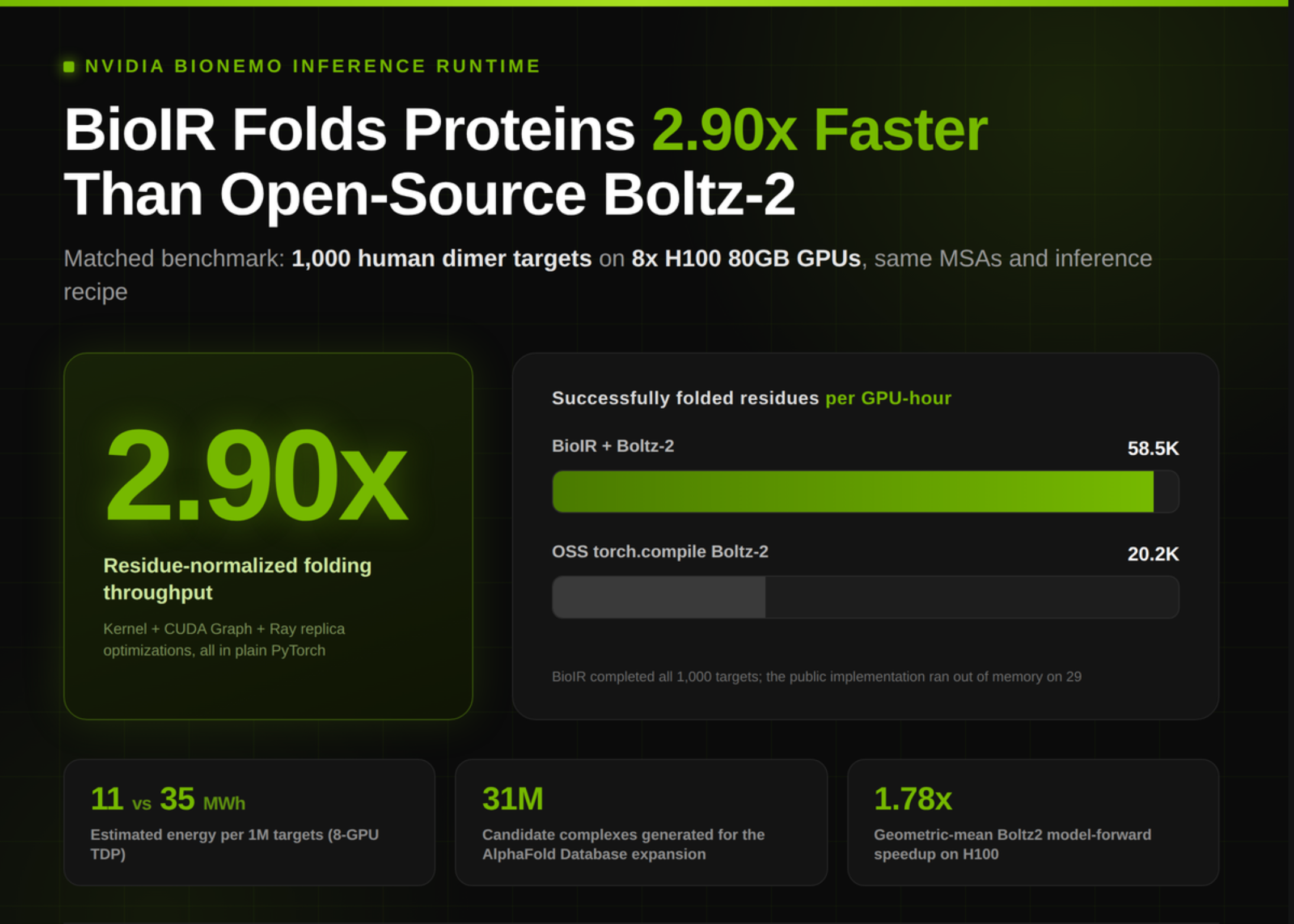

At the model-forward level, NVIDIA’s early benchmarking reports geometric-mean speedups over an OSS torch.compile baseline of 1.55x (OpenFold3), 1.78x (Boltz2), and 2.56x (OpenFold2 monomer) on H100. H200 numbers are similar at 1.54x, 1.75x, and 2.61x. These were measured across 17 inputs spanning 29 to 1,734 residues.
